XNAT

This page provides a quick-reference guide to both interactions with the XNAT UI which may be required in preparation for model training, and programmatic XNAT interactions which are made available during model training i.e. downloading imaging data.

XNAT is an open-source imaging informatics software platform dedicated to imaging-based research. XNAT’s core functions manage importing, archiving, processing and securely distributing imaging and related study data. Detailed documentation on how to use XNAT is provided on their wiki.

Upon FLIP project approval, XNAT project creation tasks are queued for each trust. Trusts poll for these tasks and create the XNAT projects locally. Relevant imaging data is then imported from trust PACS systems. Model developers are granted access to the XNAT project at each trust in order to perform any data preparation and enrichment activities which may be necessary for the running & training of AI models.

XNAT UI

Receiving XNAT Account Credentials

On approval of a FLIP project, any associated users will be granted access to the respective XNAT project at each trust. New XNAT user accounts will be generated as necessary. The email address associated with the FLIP user account will be sent details of their XNAT account credentials pertaining to each participating trust.

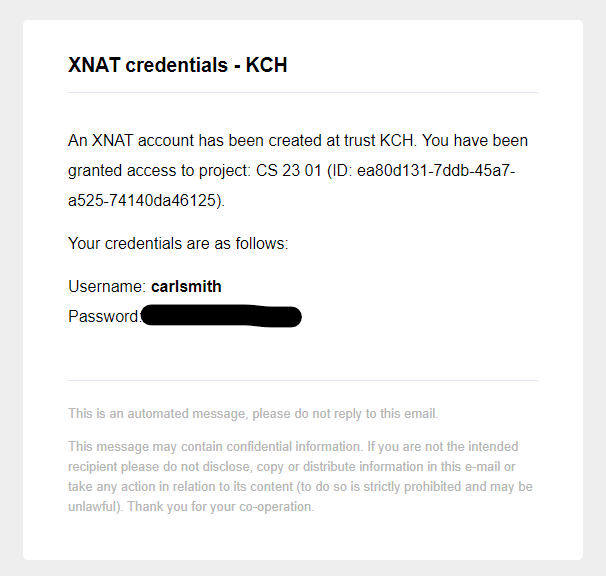

../_images/credentials_email.png

Email sent with XNAT account credentials.

Access

XNAT instances are local to each participating trust. As such, model developers are required to access the local network at each Trust in order to access the XNAT web UI and perform any data enrichment activities.

Login

Navigate to the XNAT URL. The landing page should appear as follows:

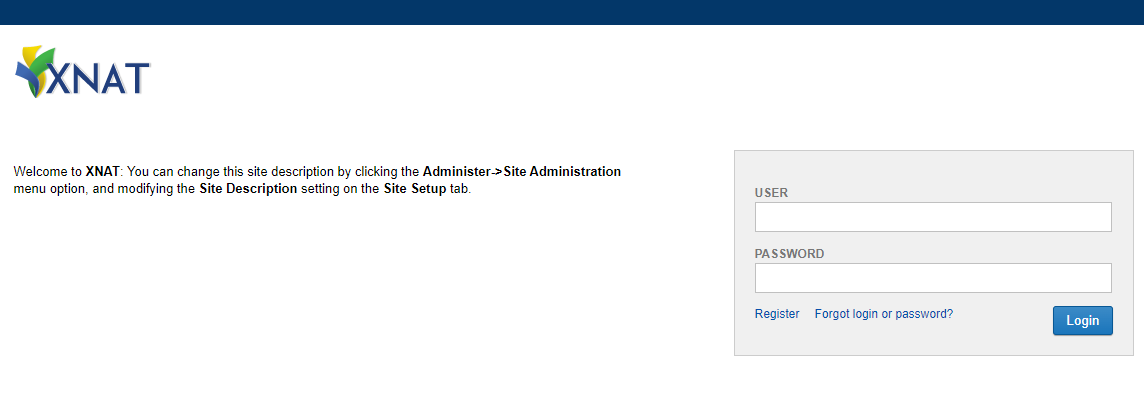

../_images/XNAT_login.png

XNAT login page.

Enter the username and password per the Receiving XNAT Account Credentials section and select ‘Login’.

On login, the browser will be directed to the homepage, which lists existing projects and offers a project search capability:

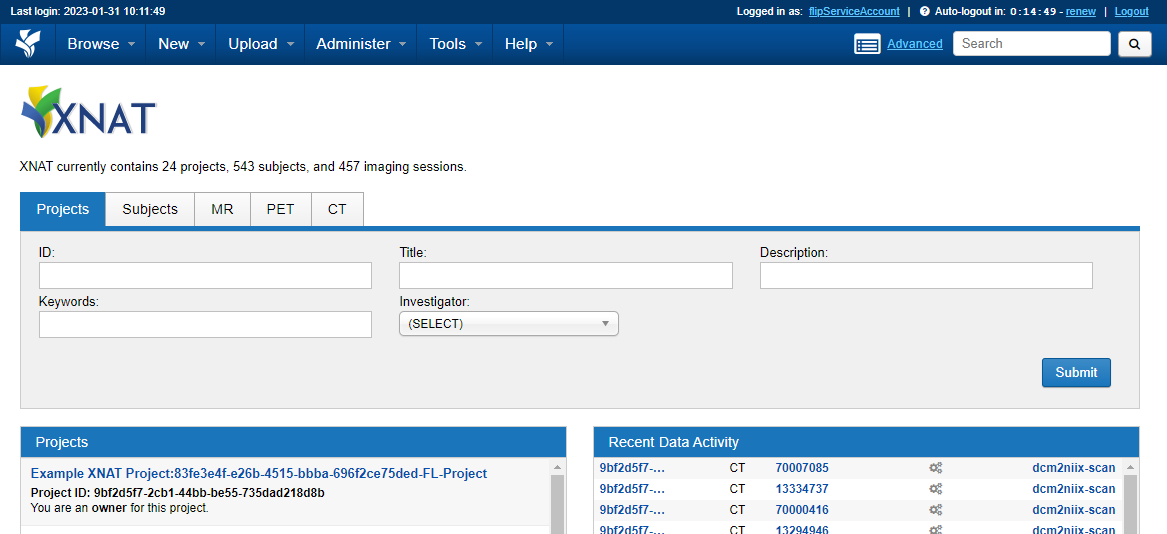

../_images/XNAT_home.png

XNAT homepage once logged in.

XNAT Project Structure and Navigation

XNAT projects exist in the following structure:

Object

Object

Project

Generated at FLIP Project approval

Subject

Represents an individual. Anonymised ID is randomly generated on import

Experiment

CT Session labelled with AccessionId

Scan

A collection / series of imaging data

Resource

Individual imaging data file e.g. DICOM, NIFTI

See Understanding the XNAT Data Model for more information.

Project

XNAT projects generated by FLIP are identifiable by a Title which is derived from their FLIP counterpart i.e., `[FLIP Project Name]`:`[FLIP Project ID]`-FL-Project.

For example, Ischemic Stroke Vessel Occlusion:2fd45bc9-861b-4467-9b78-813372a10682-FL-Project.

To navigate to a project, select a project from the project list or search for a project via the home page.

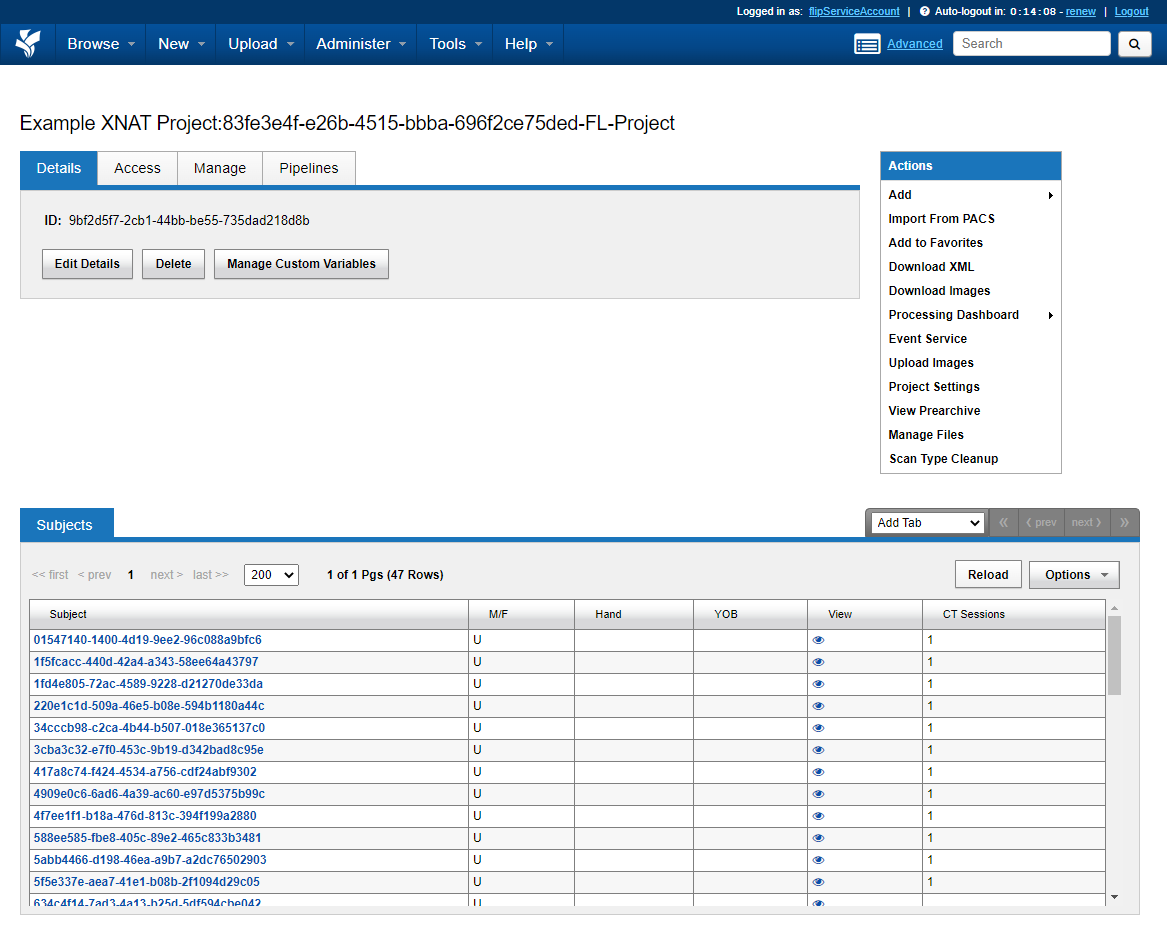

../_images/XNAT_project.png

An XNAT project.

The project page displays a list of contained subjects and permits various functions available from the right hand side ‘Actions’ menu.

Subject

Navigate to a subject by selecting it from a project’s subject list.

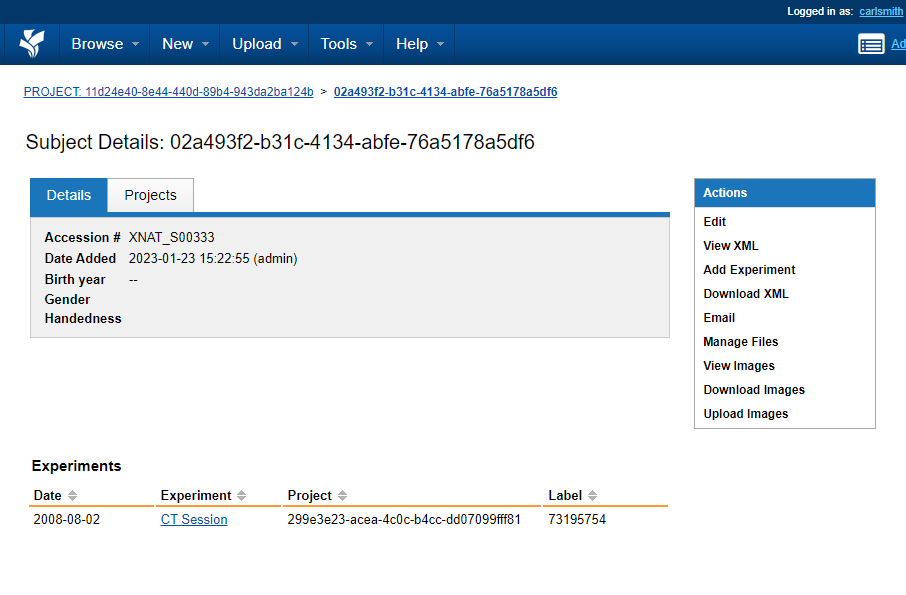

../_images/XNAT_subject.png

A specific subject.

The subject page displays a list of contained experiments (CT Sessions) and permits various functions available from the right hand side ‘Actions’ menu.

CT Session

Navigate to a CT session by selecting it from a subject’s list of experiments.

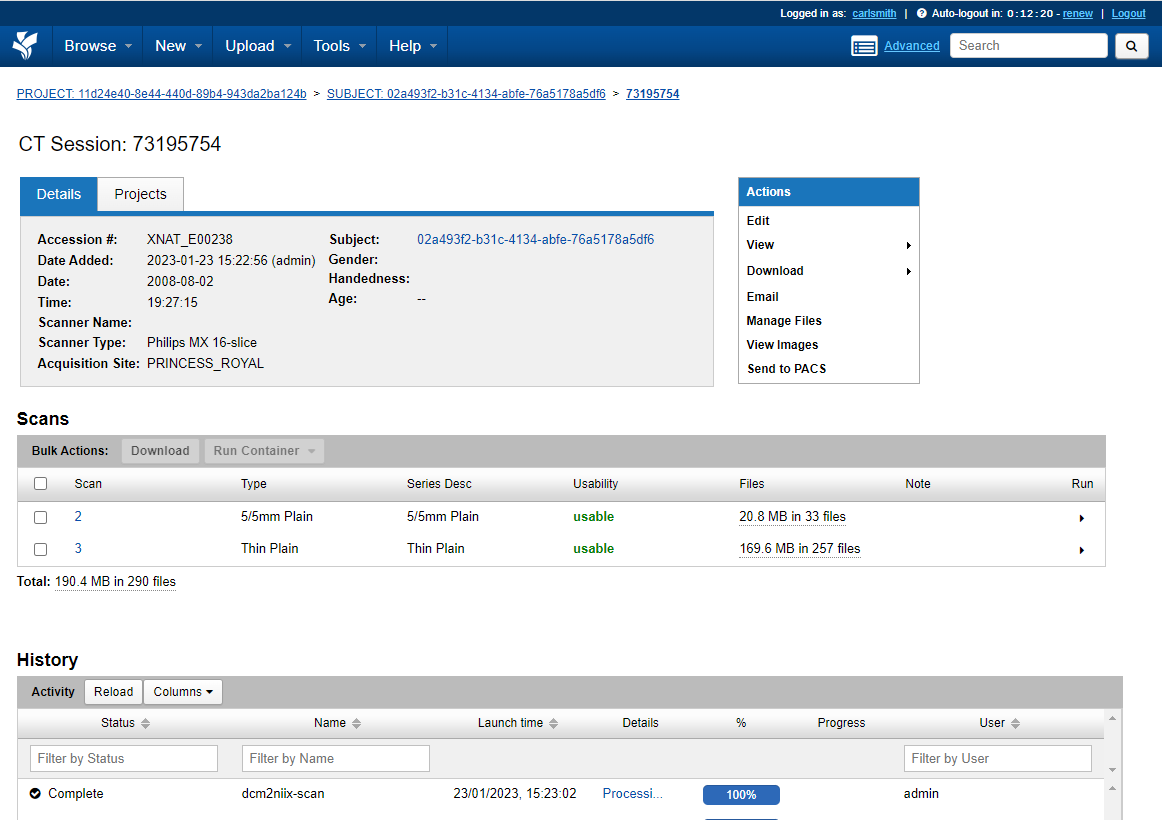

../_images/XNAT_ct_session.png

A specific CT session.

A CT session is derived from an imported PACS DICOM Study. The CT session page contains a list of scans in which imaging study data is contained. This includes imported DICOM images and the respective NIFTI files which have also been made available.

Downloading and Uploading Imaging Data

Imaging data will be automatically imported from trust PACS systems on XNAT project generation. Model developers may wish to download this data or upload new or amended imaging data to support model development.

Information on how to download and upload imaging data the XNAT UI can be found here.

DICOM Anonymization

XNAT includes a built-in anonymization engine that processes incoming DICOM data to remove Protected Health Information (PHI) from DICOM headers. The anonymization script is applied site-wide to all data received via the SCP receiver.

Default Anonymization Script

XNAT ships with a minimal default anonymization script that can be retrieved via the API:

curl -X GET "http://<xnat-host>/xapi/anonymize/default" -H "accept: text/plain"

The default script performs only basic label mapping:

//
// Default XNAT anonymization script
// XNAT http://www.xnat.org
// Copyright (c) 2005-2017, Washington University School of Medicine
// and Howard Hughes Medical Institute
// All Rights Reserved
//
// Released under the Simplified BSD.
//
version "6.1"
project != "Unassigned" ? (0008,1030) := project
(0010,0010) := subject
(0010,0020) := session

FLIP Anonymization Script

FLIP replaces the default script with a comprehensive site-wide anonymization script (anon_script.das) that provides more thorough PHI removal, including:

  • Patient identifiers: birth date, address, telephone numbers, other patient IDs

  • Institutional identifiers: institution name, address, department

  • Physician/operator identifiers: referring, performing, and requesting physicians

  • Other identifying tags: accession number, medical record locator, ethnic group, occupation

  • UID pseudonymization: study and series instance UIDs are hashed for repeatable pseudonymization

  • De-identification recording: sets Patient Identity Removed and De-identification Method tags

The script is configured automatically during XNAT initialization via configure-xnat.sh. It is applied to all incoming DICOM data when the SCP receiver has anonymizationEnabled set to true.

Anonymize API Endpoints

The following XNAT anonymize-api endpoints are used by FLIP:

Method

Endpoint

Description

GET

/xapi/anonymize/default

Gets the default anonymization script

PUT

/xapi/anonymize/site

Sets the site-wide anonymization script

PUT

/xapi/anonymize/site/enabled

Enables or disables the site-wide anonymization script

DICOM to NIfTI Conversion

XNAT can automatically convert DICOM images to NIfTI format using the dcm2niix tool via the Container Service plugin. FLIP controls this conversion on a per-project basis through two XNAT mechanisms:

Commands vs Event Subscriptions

XNAT’s Container Service registers dcm2niix as a command. This command is enabled site-wide, making it available for manual triggering from the XNAT UI in any project via the Run Containers action menu.

XNAT’s Event Service provides event subscriptions that automatically trigger commands in response to platform events. FLIP creates per-project event subscriptions that listen for ScanEvent:CREATED events (i.e., when DICOM data is archived) and auto-trigger the dcm2niix command.

Per-Project Configuration

When a FLIP project is created, the dicom_to_nifti setting controls the event subscription:

  • Enabled (dicom_to_nifti=True): An active event subscription is created for the project. When DICOM scans are uploaded, dcm2niix runs automatically and NIfTI files are made available alongside the original DICOM data.

  • Disabled (dicom_to_nifti=False): An inactive event subscription is created. No automatic conversion occurs, but dcm2niix can still be triggered manually from the XNAT UI if needed.

The event subscription can be activated or deactivated later via the XNAT Event Service API.

Event Service API Endpoints

The following XNAT Event Service API endpoints are used by FLIP for managing per-project event subscriptions:

Method

Endpoint

Description

POST

/xapi/projects/{project}/events/subscription

Creates a project-scoped event subscription

GET

/xapi/projects/{project}/events/subscriptions

Lists all event subscriptions for a project

DELETE

/xapi/projects/{project}/events/subscription/{id}

Deletes an event subscription

POST

/xapi/projects/{project}/events/subscription/{id}/activate

Activates a deactivated subscription

POST

/xapi/projects/{project}/events/subscription/{id}/deactivate

Deactivates an active subscription

FLIP XNAT methods

The following methods are available to be used in training, located in the flip-utils package:

  • get_dataframe(self, project_id: str, query: str) -> DataFrame

    This retrieves data in the form of a Dataframe containing, at the minimum, accession IDs. The method takes in the project ID and the project query as parameters. These values are already passed in as parameters to the trainer to be used.

  • get_by_accession_number(project_id: str, accession_id: str, resource_type: ResourceType | list[ResourceType] = ResourceType.NIFTI) -> Path

    Downloads scans of the requested resource type (NIFTI by default) and places them in a directory made available to the FL training script. Takes the project ID and an accession ID (which can be obtained from get_dataframe) and an optional resource_type (single value or list). Returns the path to where the scans are stored.

See the Federated Learning Nodes documentation for the full list of flip.* calls available to user training code.
